SPECIFICATIONS

Acutation Range: 0.1-3.40mm
Application: Desktop,Laptop
Axis Body Brand: Akko
Backlight Type: MULTICOLOR
Battery: 10000mAh(only wireless)
Battery Included: Yes
Brand Name: AKKO
Case Material: ABS
Certification: CE,weee
Full Size keyboard: No
High-concerned chemical: None
Interface Type: USB,Bluetooth,Bluetooth / USB
Key Feature: Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD/Rapid Trigger
Keyboard Standard: 88 Keys
Keycap: Cherry Profile
Keycup material: PBT plastic
Keycup printing: Doublshot
LED: South-facing ARGB(500Hz Refresh Rate)
Language: English
Layout: US-ANSI
Magnetic Switch Cross-Compatibility: Support
Mechanical Switches Supported: Not Supported
Model: Akko 5087 V3 HE
Mount: Gasket Mount
Operation Style: Mechanical
Origin: Mainland China
Package: Yes
Plate: Aluminum
Polling Rate: 8,000Hz
RT Accuracy: 0.005mm-2.500mm
RT Stabilizer: Support
Software: Akko Cloud Driver
Style: Standard
Switches Hot swap: no
Type: 2.4Ghz Wireless
Wrist Support: No


5087 V3 HE Magnetic Keyboard






80% | TKL Layout | 8,000Hz Polling Rate | RT 0.005mm

Cross-Compatible with Mainstream Magnetic Switches

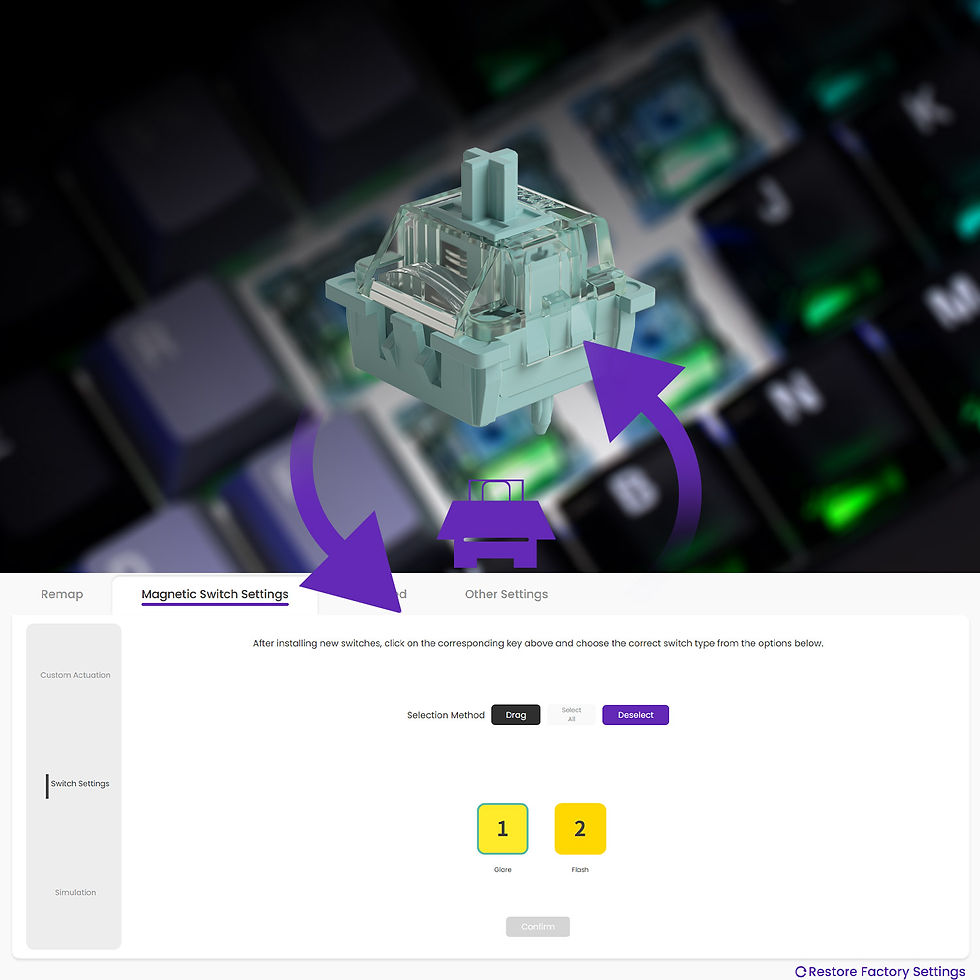

5087 V3 HE Magnetic Keyboard provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.
Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy. Mechanical switches are not supported.
























Akko AstroAim Magnetic Switch
Type: Linear
Total Travel: 3.5±0.1mm
Initial Force: 35gf
End Force: 55gf
Initial Magnetic Flux: 95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)
Bottom-out Magnetic Flux: 580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)
Top/Stem/Bottom: PC/POM/PA66
LED Diffuse
